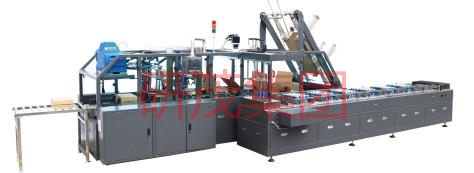

Automatic wrapping machine: XK-GB15-B

product description:

XK-GB15-B automatic wrapping packing machine with a high degree of automation, simple operation, strong adaptability. Is a widely used automatic packing complete sets of equipment. Suitable for chemical industry, food and other industries in the glass cans, cans, plastic buckets filling items and cartons, plastic packaging and other flexible packaging items automatically boxing.

Structural features:

XK-GB15-B automatic wrapping, packing machine has the advantages of simple structure, convenient adjustment and man-machine interface setting operation. Generally in the product size, grouping and cutting die board size is determined, the machine can be adjusted within 15 minutes is set.

Technical specifications and performance parameters:

Packaging process: divided into bottle conveyor, bottle sub-stack, cardboard transportation, bottle into the box, glue, carton wrap molding, output

Packing speed: 8 ~ 15 boxes / min

Grouping: 2x3, 3x4, 4x6 and other even groups; and can be set to 5 listen odd grouping; can be completed 1 to 2 layers packing

Carton form: die-cutting cardboard, forming boxes

Sealing form: Folding sealing, unpacking side sealing

The required parameters when ordering:

Carton appearance: long (L) x wide (W) x high (H);

Packaging items: barreled, canned, boxed and bagged;

Packaging items specifications: Dimensions;

Group formation: one or two layers;

Packing speed: box / min;

Technical Parameters:

safety protection:

All movements are equipped with overload protection, fault automatic shutdown device, lack of bottles, lack of boxes, blocking boxes, dislocation and other phenomena, it can automatically alarm and shutdown;

Fully enclosed safety guard, door with safety switch;

Has a complete safety device, safe and reliable and in line with safety standards;

Security door configuration using PC transparent plate material, easy to operate, and beautiful;

Electrical waterproof grade IP up to 54.

Equipment main original configuration list:
