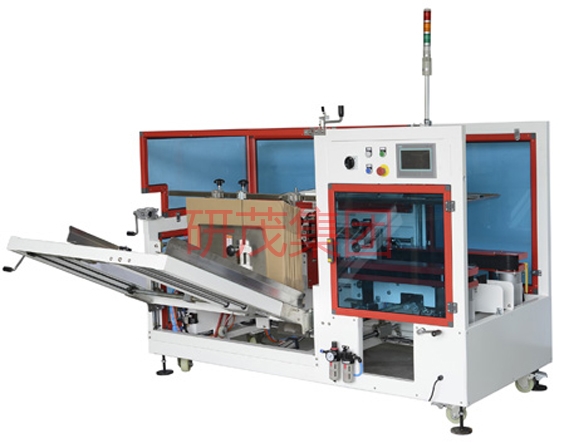

Automatic box machine

Details

Features:

★ equipment design and production line with the process and layout requirements, nice appearance, manufacturing process is good

★ electricity, low water consumption, operation, adjustment and maintenance simple and quick

★ The machine has good self-protection features, such as overload protection and safety gates

★ Whether there is tape and cardboard box alarm function

★ tank body: a can be placed about 50 unformed boxes (depending on the thickness of the carton), and can be added at any time

Electrical configuration:

◆ PLC control: Germany "Siemens"

◆ Contactor: France "Schneider"

◆ Sensor: Germany "P + F"

◆ button switch: France "Schneider"

◆ man-machine interface: Germany "Siemens"

◆ Pneumatic components: Taiwan, "Ya Deke" cylinder / solenoid valve / magnetic switch, the German "FESTO" sucker and vacuum generator;

◆ Motor: Taiwan "Ruyang"

Technical Parameters:

1. Power: 220V 50Hz 400W

2. Pressure: 6㎏ / cm2

3. Air consumption 200L / min

4. Machine dimensions: L2000㎜ × W1950㎜ × H1500㎜

5. Machine weight: 400㎏

6. Carton specifications: 410 <L + W <910 W180-390,620> W / 2 + H> 310 (carton specification list to be provided)

7. Tape width: 4.8-7.2 ㎝

8. molding speed: ≤ 10 boxes / minute (depending on the size of the carton)

9. stand-alone production efficiency: ≥ 95%

10. Carton loss: 1 ‰

11. Out of the box: vertical molding

12. Workflow: Suction box - Unpacking - Front and rear paper cover - Folding left and right paper cover - Seal the bottom

13. Environmental conditions: humidity ≤ 98%, temperature 0-40 ℃
