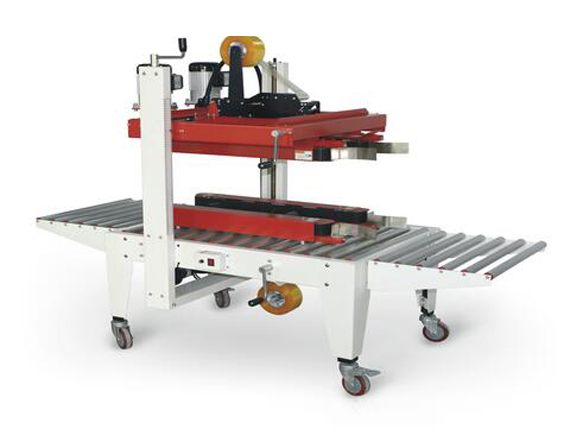

Machine Model: SHXK- FD4050
The smallest carton size: L150 * W120 * H200mm
Maximum carton size: L∞ * W400 * H500mm
Belt speed: 20 m / min
Mechanical Dimensions: L1000 * W880 * H1330mm
Applicable power: 220 / 380V 50Hz
Power consumption: 0.4KW
Applicable tape: W48,60,75mm choose one
Machine weight: 180KG
Machine features:
• Suitable for narrow, high-grade carton use;
• When changing specifications, adjust the width and height manually.
• Transmission adopts upper and lower belt drive;
• Can be wired or stand-alone operation, manually fold the lid up and down, "a" word sealed once completed;
• Standard machine table height is 600mm;
• Sticking device structure is precise and firm, it runs smoothly and has long service life.
• Outside the standard specifications, non-standard customization is acceptable
。
|
|
