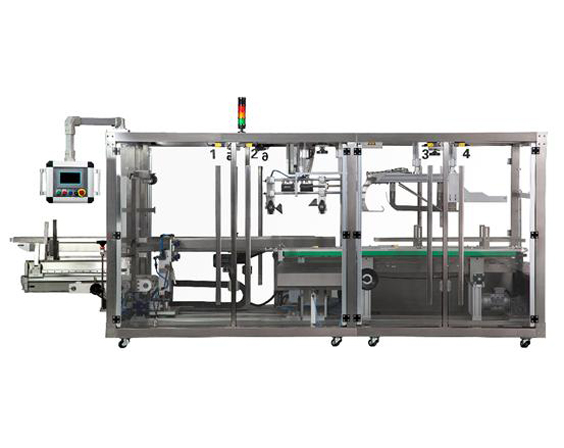

Automatic opening and closing one package machine

Category:Equivalent (open package one machine)
Clicks:
Data:2018/01/03
More
Online Inquiry

Details

First, the device features:

1. Automatically open the box,

2. Be packaged automatically (according to user requirements).

3. Suction cup automatic packing

4. Automatic sealing (transparent tape)

Second, the packaging process:

1. Equipment by the conveyor belt and upstream equipment connected to the conveyor belt will be transported to the finishing area finishing materials.

2. The unpacking station comes into operation, unpacks the carton and sends it to the packing area.

3. During the process of conveying the carton to the packing area, the next page of the station starts to operate and the small page at the bottom of the carton is closed. After the carton is delivered in place, the big page at the bottom of the carton is completed.

4. At the same time, box office started operation, propped up the size of the upper page to ensure that the material packing stable and reliable.

5. The finishing area arranges the materials according to the requirements. After finishing, the main push bag starts to operate and pushes the materials to the loading platform.

6. Material arrived packing platform, the material further finishing.

7. The main hand began to operate, the finished material will be picked up and placed in a cardboard box.

8. The main hand to complete the first layer of material packing, run to the top of the packing platform to wait for the second layer of material finishing.

9. After the second layer of material finishing, the main hand again operation, the second layer of material into the box. Then return to the top of the loading platform waiting for the next box of material.

10. Discharge delivery, in the delivery process, followed by the completion of the top of the small pages, closing the top of the page, up and down sealing tape and other processes.

11. At this point, the material packing is completed, delivered to the downstream equipment from the discharge. Each station waiting for the next cycle.

Third, the function and characteristics

1. Unpacking packing one machine form, small footprint;

2. Product arrangement molding, packing small arrangement, easy to back-end packing,

accelerate;

3. Bin easy to adjust, enabling rapid replacement;

4 vacuum suction product packing;

5. Easy to adjust the smooth box body;

6. The control panel displays the operation interface for the touch screen.

Fourth, the box silo features:

1. Carton storage capacity ---- standard can store 50 or so of the carton,

Can also be reduced on request.

2 using the carton suction cup. Suction cups cover the entire length of the carton

Degree, and with a protective cover. Make extraction more accurate, and sucker damage

Bad tendency is smaller than normal system;

3. Appear the following situations have sound and light alarm:

1) when the silo is empty; 2) when the mechanical protection shutdown occurs;

4. The carton is fed from the infeed tank via a transport carriage

Motor drive, transfer cartons to the loading station; also loaded by the transfer rack

Transfer the cartons to the sealing station - Always control the cartons throughout the entire packaging process,

5. Carton open for the motor drive, very accurate and correct,

6. Carton in the extraction, product loading and sealing station did not move between

7. Load the system-controlled feed push plate for smooth delivery; when the product pack is pushed into the carton,

Shall be equipped with reverse follow-up protection device, to maintain product group package stability, especially for a single carton direct packing operation,

Make sure the carton is stable and safe.

Unpacking agencies:

1. Carton opening device - using a telescopic device

Make sure the lid is fully open and the carton is square.

2. Configure the closure bar to close the lid correctly

The device should be neat and precise to ensure accurate folding

3. The packing machine structure is simple and compact. The drive is mounted behind the backplane

Eliminating the possibility of contamination, the equipment has a safety gate to facilitate it

Operators more easily access to various stations, easy to clean broken

Debris and dust

4. Mechanical drive and product area isolation, the product can not fall in the machine, to facilitate cleaning, the operator easy to enter and observe the various stations, smooth, fast and controlled operation of the product

5 can change the operating parameters of flexibility to achieve rapid switching of different product specifications, product specifications stored in the menu memory
